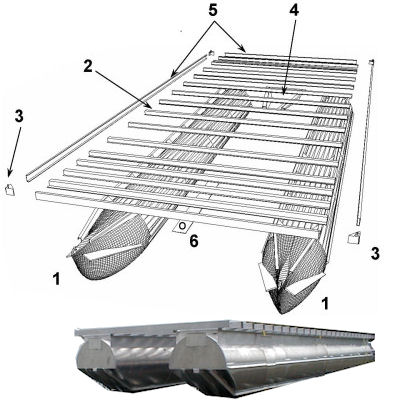

Boat Kit Exploded View

1. 2 aluminum pontoons, each with side and bottom keels, front water deflectors, full length risers, sealed chambers at 5 ft. lengths or less and a rear transducer mounting bracket.
2. High Capacity Pontoons have a flat nose as the below actual photo
3. Aluminum extruded hat bar cross members x width of boat. Additional bars for reinforcement at motor mount and bow.
4. 4 aluminum corners c/w mooring eyes.
5. Aluminum motor support (16 inch transom).
6. Aluminum edging for complete perimeter.
7. Towing bar.
8. All necessary nuts, bolts, screws, etc.
9. Assembly booklet.

Power Hand Drill & drills (1/8",3/16",1/4", 3/8", & 9/64" or 5/32"), Drill Drive Bits (for flooring screws), Ratchet Wrench (with 1/4" & 3/8" attachments and same size spanners), Pop Rivet Gun, 25' Measuring Tape, 50 ft. of string, pencil or fine point marker.
